Drinking Water Storage Tanks (8,000 – 16,000 Liters)
RoDrink 2100 – Flexible Drinking Water Solution for Medium-Scale Supply Projects.
Every drop of drinking water counts. With RoDrink tanks, fresh water from springs is efficiently captured—for instance, via spring catchments—and safely channeled into the drinking water reservoir.
The RoDrink 2100 PE drinking water reservoir (8,000–16,000 L) offers a high-performance solution for medium-scale water supply systems. Engineered for the safe collection and long-term storage of drinking water, it supports sustainable water management concepts.
RoDrink water containers are certified for the storage of drinking water.
REG2-0004-04-ZGPro1-2731

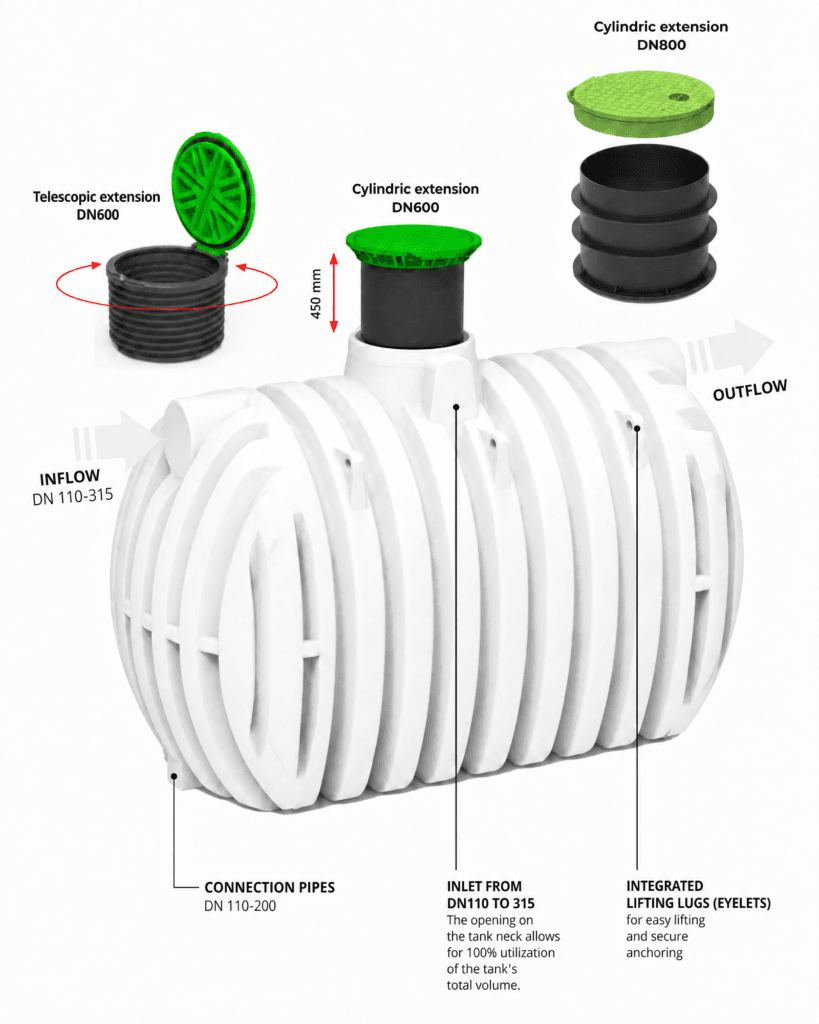

RoDrink 2100 in Detail
RoDrink PE drinking water tanks represent a reliable and certified solution for the safe collection, storage, and utilization of drinking water. Manufactured from food-grade polyethylene (PE), they meet the highest standards for hygiene, safety, and durability.
Designed for Underground Installation—Robust and Durable
RoDrink drinking water tanks are designed for underground installation. The robust PE material is corrosion-resistant, durable, and resilient against external influences. The walkable, watertight PE cover provides additional safety and reliably protects the tank from contamination.
Flexible Adaptation to Any Terrain
The telescopic dome shaft allows for easy adjustment of the access opening to match the specific ground level. This enables the tank to be flexibly integrated into a wide range of construction projects—regardless of the terrain shape or installation conditions.
Economic Viability & Efficiency
- Plug & Play – Project-Specific and Tailored
- Series connection of multiple tanks is possible.
- Various Connection Systems depending on project requirements
- Reduced Transport Costs
- Quick Installation
Safety & Structural Analysis
- In cases of high groundwater levels: Anchoring to a concrete slab is possible.
- Integrated partitions available
- Variable dome openings (DN600, DN800)
- Certified by ZAG – for the storage of drinking water
Sustainability & Maintenance
- High-Quality Polyethylene (PE) Dowlex 2432
- Lifespan: 100+ Years
- 100% Waterproof
- Corrosion-free and durable in the ground
- Maintenance-friendly accessibility through freely configurable manholes.
Technical data
1.Superior Structural Integrity: Enhanced load-bearing capacity and advanced statics ensure the tank remains stable under extreme pressure.
2.Heavy-Duty Traffic Rating: Due to its robust construction, it is traffic-loadable up to 40 tonnes, making it ideal for areas with heavy vehicle traffic.
3.Resilience in Challenging Terrain: The reinforced design provides exceptional resistance to high groundwater levels, preventing deformation or buoyancy issues.
4.100% Volume Utilization: Inlets are positioned on the tank neck, allowing for full use of the internal storage capacity.
5.Extensions: Available with 3 types of risers and covers to accommodate various installation depths and site requirements.
6.Streamlined Logistics: Built-in lifting eyes and a forklift-friendly base ensure simple and safe manipulation during transport and positioning.
7.High-Capacity Interconnectivity: Features large flat surfaces for easy connection of multiple tanks, supporting pipe diameters up to DN 315.
8.Multi-Directional Connections: Inlets and outlets can be configured from multiple sides for maximum plumbing flexibility.
9.Cost-Efficient Installation: Requires a narrower excavation pit and less backfill material, significantly reducing overall installation time and costs.
Advantages of the RoDrink
Lower transport costs and easy loading and unloading
A RoDrink container with a volume of 65,000 liters can be transported on a truck.
The container can be lifted and moved using lifting straps at the marked points.
Outstanding Structural Stability
The profile of the container is designed to achieve excellent structural stability. Earth loads exert less pressure on the sides of the tank.
Installation
Simple and quick installation
Installing the Roterra is simple due to its shape; it requires a much smaller excavation pit and less backfill material.
Additional RoDrink Models
RoDrink 1400
Compact solution for small agricultural holdings and small spring catchments.
RoDrink 1800
Expanded storage capacity for agricultural holdings or small commercial units.
RoDrink 2100
Powerful solution for commercial businesses and agricultural applications.
Current selection
RoDrink 2300
High-performance solution for commercial and agricultural applications.
RoDrink 2450
Large-Volume Drinking Water Storage Tanks for Municipal Infrastructure, Industrial Facilities, and Supply Networks.
FAQ
The RoDrink offers a maximum volume of up to 65,000 liters, making it suitable for commercial, industrial, and municipal projects with high water requirements.
The RoDrive is groundwater-stable up to the midpoint of the tank, thereby offering a high level of safety—even under challenging soil conditions.
Inlet and outlet sizes ranging from DN 110 to DN 300 are available. Multiple tanks can be coupled longitudinally and laterally to flexibly expand storage capacity.
