8,000 – 16,000 liters – trafficable up to 40 tons axle load.
RoDrive - Maximum stability. Maximum flexibility. Maximum volume.
With the certified Roterra Drive solutions (RoDrive) , you can make dual use of existing traffic areas: The tanks are installed directly beneath roadways and create additional storage space without taking up valuable land area.
Rainwater, greywater, or firefighting water are stored exactly where the space would otherwise be used exclusively for traffic. Parking lots, roads, access roads, and other paved areas remain fully usable while simultaneously fulfilling a key infrastructural function.
Whether municipal infrastructure, sports facilities, industry, or commercial:
RoDrive stands for high load-bearing capacity, tested safety, and customization for each project – even under demanding conditions.
RoDrive in detail.
RoDrive can withstand axle loads of up to 40 tons and is therefore ideally suited for traffic and industrial areas. The design meets the highest structural requirements and enables long-term use in high-traffic areas.
The significantly lower weight compared to concrete tanks greatly facilitates transport, handling, and installation. This reduces installation times, simplifies construction site logistics, and increases efficiency throughout the entire project process.
As an integrated infrastructure solution, RoDrive combines traffic surfaces and storage technology in a single system. Whether rainwater, greywater, or firefighting water—the storage concept is precisely tailored to the specific application and implemented with technical precision.
The advantages of RoDrive at a glance:
Cost-Effectiveness & Efficiency
- Monolithic manufacturing up to 65,000 liters
- 20,000-liter tank: the world's largest single-piece rotomolded container
- Plug & Play – Tailored to Your Project
- Series connection of multiple tanks is possible
- Various connection systems depending on project requirements
- Lighter than concrete – easier to handle
- Reduced shipping costs
- Quick installation
- Versatile applications: Rainwater, firefighting water, drinking water, retention, wastewater
Safety & Structural Engineering
- Suitable for trucks with an axle load of up to 40 tons
- Suitable for use with groundwater levels up to 1.3 m above the bottom edge of the tank
- If groundwater levels are high: Can be anchored to a concrete slab
- Optional Drainage Systems
- Integrated partitions available
- Variable-diameter manhole openings (DN600, DN800)
- Certified by ZAG – passed all static and dynamic tests
- “Sign of Quality in the Construction Industry 2023” Award
Sustainability & Maintenance
- Material: High-quality polyethylene
- Lifespan: 100+ years
- 100% waterproof
- Corrosion-free and durable when buried
- Easy maintenance access thanks to freely configurable dome shafts
- Reliable performance even in difficult soil conditions

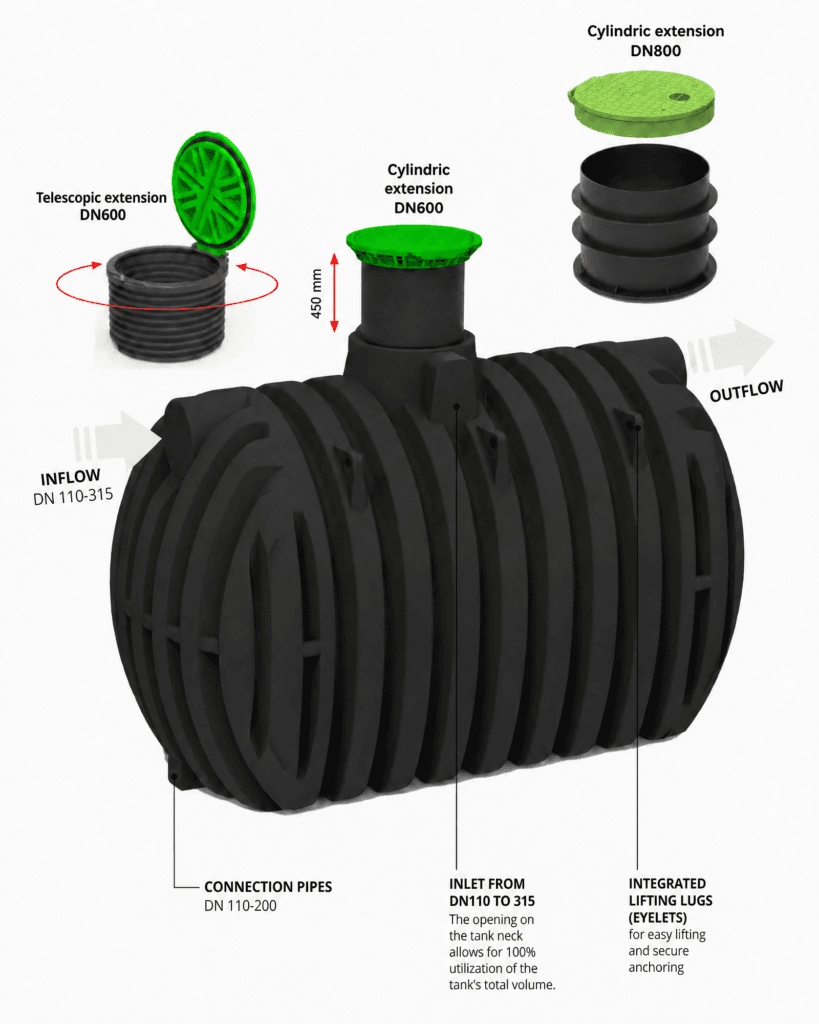

Technical data and dimensions
1.Superior Structural Integrity: Enhanced load-bearing capacity and advanced statics ensure the tank remains stable under extreme pressure.
2.Heavy-Duty Traffic Rating: Due to its robust construction, it is traffic-loadable up to 40 tonnes, making it ideal for areas with heavy vehicle traffic.
3.Resilience in Challenging Terrain: The reinforced design provides exceptional resistance to high groundwater levels, preventing deformation or buoyancy issues.
4.100% Volume Utilization: Inlets are positioned on the tank neck, allowing for full use of the internal storage capacity.
5.Extensions: Available with 3 types of risers and covers to accommodate various installation depths and site requirements.
6.Streamlined Logistics: Built-in lifting eyes and a forklift-friendly base ensure simple and safe manipulation during transport and positioning.
7.High-Capacity Interconnectivity: Features large flat surfaces for easy connection of multiple tanks, supporting pipe diameters up to DN 315.
8.Multi-Directional Connections: Inlets and outlets can be configured from multiple sides for maximum plumbing flexibility.
9.Cost-Efficient Installation: Requires a narrower excavation pit and less backfill material, significantly reducing overall installation time and costs.
Versatile applications
RoDrive is designed as a high-performance large-capacity container for a wide range of applications and can be precisely tailored to the specific function. With its flexible configuration, integrable partitions, and project-specific connection solutions, it creates a system that precisely meets technical requirements.
- Buffer tank for the temporary storage of process water or stormwater
- Retention basin for controlled runoff regulation during heavy rainfall events
- Drinking water tanks for agricultural applications
- Oil separator systems for the safe separation and storage of contaminated fluids
- Wastewater treatment plants as a component of decentralized drainage systems
- Firewater storage tanks to ensure compliance with legally required firewater reserves
- Rainwater harvesting systems for sustainable irrigation and industrial water solutions
- Septic tanks for residential, commercial, or municipal use
Whether as a single tank or in a series configuration, RoDrive adapts functionally and in terms of capacity to the specific project requirements, offering a durable underground storage solution for municipal, commercial, industrial, and agricultural projects.
Parking spaces
Parking areas are indispensable—at shopping centers, hotels, hospitals, and many other facilities. At the same time, they represent a vast, previously untapped resource: enormous sealed surfaces that are mostly used exclusively for stationary traffic.
With RoDrive, you can transform this space into additional storage space. The tank can be efficiently integrated beneath parking spaces without restricting the use of the surface. Thanks to its high load-bearing capacity, the area remains fully accessible and usable.
By connecting multiple RoDrive tanks, you create a high-performance storage system with a large volume. This transforms your parking lot into a large underground tank—for rainwater, firefighting water, or process water—and supports an independent, sustainable water supply.
Industrial areas
Industrial areas present unique challenges: heavy traffic, heavily used surfaces, and nearly fully developed sites leave little room for additional infrastructure. There is usually no space for large water tanks.
RoDrive was developed specifically for these conditions. It is installed beneath traffic areas, parking lots, or adjacent to production areas—without losing valuable operational space. Its high load-bearing capacity enables long-term use even under intensive heavy-duty traffic.
This creates a high-performance underground water storage system for production processes, cooling water, or sanitary water. By utilizing and storing rainwater or process water, you reduce operating costs and sustainably increase your supply security.
Tank connections for increased capacity
RoDrive advantages
Lower transportation costs and easy loading and unloading
Suitable for vehicles with an axle load of up to 40 tons
A RoDrive container can withstand axle loads of up to 40 tons.
Installation
- Easier to handle than concrete tanks.
- Lightweight for quick installation.
- Different numbers, sizes, and locations of the DN600 and DN800 manhole openings
- 100% waterproof
- The water tank has excellent structural properties and is resistant to ground and underground water pressure.
- Made in EU
Accessories
- Cast iron cover DN 600
- Cast iron frame
- Load-balancing ring
- Cylindrical manhole DN 800 with a conical section DN 600, h=1000; load class: D 400 kN
Video
RoDrive is the smart large-capacity tank solution for modern infrastructure. Installed beneath roadways, parking lots, and industrial areas, the system utilizes previously unused space for the efficient storage of rainwater, firefighting water, or process water.
With high load-bearing capacity, quick installation, and customizable design, RoDrive combines maximum space efficiency with sustainable water management—for municipalities, commercial, and industrial applications.
FAQ - Frequently Asked Questions
The RoDrive offers a maximum capacity of up to 65,000 liters, making it suitable for commercial, industrial, and municipal projects with high water demand.
Yes. The RoDrive can withstand truck traffic with axle loads of up to 40 tons, making it suitable for driveways, parking lots, and traffic areas.
The RoDrive remains stable in groundwater conditions down to the center of the container, thereby providing a high level of safety even in challenging soil conditions.
Inlet and outlet sizes ranging from DN 110 to DN 300 are available. Multiple tanks can be connected end-to-end or side-by-side to flexibly expand the storage capacity.
